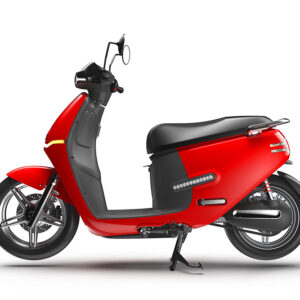

Horwin EK3

$6,900.00

A compact and manageable scooter, Horwin EK3 impresses with its ability to hit 100kmh in under 5 seconds, making it adept at handling inclines. With a dual battery setup, it boasts a 200 km range in urban settings. Comparable to a 125cc motorcycle, it excels with rapid acceleration akin to 250cc internal combustion engine motorcycles, with an option to limit speed for those without a motorcycle license.

SKU: Horwin-EK3 Category:

Overview

The Horwin EK3 made its debut in Austria back in 2020, generating excitement for its contemporary aesthetics, sleek lines, vibrant color palette, and avant-garde elements, all combining to present a sophisticated electric motorcycle option. Positioned as the counterpart to motorcycles in the 125cc ICE category, the EK3 truly shines in terms of its capabilities, refinement, and day-to-day convenience, establishing itself as a perfect solution for the modern daily commuter.



The EK3 brushless electric motor is capable of top speed of 100 kilometers per hour, making it the fastest scooter in this price range. Features include cruise control, a fully digital instrument panel, a combined braking system (CBS), and an optional second battery, which doubles the scooter’s range from 100 kilometers to an impressive 200 kilometers on a single charge. It is equipped with high charge/discharge current battery which allows it to be charged in less than an hour with a fast charger.

The centrally mounted Motor developed by Horwin provides an output of 6.7 kW, making it one of the most powerful in this class. The EK3 accelerates to 60km/h in six seconds, with full torque triggered immediately when the throttle is activated. The constant power of the engine motor ensures smoother running for the widest range of road conditions.



The compact size of the EK3 with a 14-inch front wheel and 13-inch rear wheel offer excellent handling and manoeuvrability. The EK3 weighs only 95 kg and has a maximum load capacity of 200 kg. It has a space for two people and offers a nicely designed rack and cargo box to support additional storage space.

The EK3 scooter is equipped with double hydraulic shock absorbers at the front and rear offering safety and security for variable road and weather conditions. The EK3 comes with hydraulic brakes and a Combined Braking System (CBS) from Brembo, offering a seamless alignment between the front and rear brakes which is automatically activated in an emergency to optimize the use of the front and rear brakes to reduce the breaking distance and improving rider safety.

The automatic daytime running light DRL (Daytime Running Light) provides illumination with its intensive white xenon lamp. The improved lighting brings more safety especially on rainy and foggy days. An automatic light switch-off delay lights your way to the garage or entrance door when you turnoff and walk away from your vehicle. The headlights are equipped with LED lamps and provide for brighter and whiter which can pierce through the din of the night and offer far superior illumination than standard incandescent lamps. Some of the additional capabilities of the EK3 allow you to charge your smartphone on board via the USB connector. The vehicle key has a remote control built in: This way you can start, stop and even lock the scooter thanks to the proximity sensor detecting the key fob in your pocket.  It has an anti-theft system, digital touchscreen dashboard and cruise control.

Specifications

DRIVE SYSTEM

Motor

Axial flux center motor 1.5KW Nominal, 6.5KW peak power, 6,365 RPM, 195 Nm Max torque

Motor Controller

External FOC with dynamic vector control algorithm for speed/torque

Max Speed

95km/h

Max Torque

195 Nm at 500rpm

POWER SYSTEM

Battery Pack

72V 40AH Panasonic Lithium-Ion battery pack

Power System Protection

150A resettable circuit breaker, low-voltage cut-out (by controller), Battery protected by BMS

Standard Charger

Li-Ion external, 72V 10 A Automatic Charger, 110VAC input ~4hr charge time

12V Subsystem Converter

DC/DC 72V<12V 10A

User-removable Battery

Yes

USB Charging Port

Yes, 1A USB port

Brakes Hydraulic CBS

Front brake – Right Lever – activates Racer type 240mm disk CBS with the rear wheel
Rear brake Left Lever – activates 180mm rear disk only

RUNNING GEAR

Front Suspension

1:7.8 reduction with chain transmission
Inverted 700mmX35mm twin internal hydraulic shocks with 200mm travel distance

Rear Suspension

Adjustable dual over spring/hydraulic shock

Front Tire

Tubeless 14” X 3.5” DOT-spec

Rear Tire

Tubeless 13” X 3.5” DOT-spec

BODY & CHASSIS

Frame

Aluminum-magnesium alloy

Shell

ABS composite, epoxy paint

Foot rests

Fixed

Seat

Padded, double place, 780mm (30”) above ground

Instruments

Classic/LCD bright dashboard displays Current speed, Total mileage, Error codes, Real time output current, Battery State of Charge, trip distance and remaining distance, Ambient temperature and current time. Automatically illuminates on low ambient light.

Safety Equipment

Automatic Light mode estimating the ambient light for the right intensity
Dual rear-view mirrors, horn, dual high/low beam automotive grade LED headlights with running light, front and rear turn signals, tail light, brake light
License plate light
Hazard lights, LED headlight bulb with focusing optic

Security

Keyless start, Built-in vibration sensitive alarm system with two remote controls, steering lock

PERFORMANCE

Top Speed

70km/h as per LSM regulations or 95km/h if registered as an open motorcycle

Range

Mode Range
Eco mode (45 km/h) 100/200 km
Sport (95km/h) 65/130 km

Climbing Ability

Load Incline[%] Degree
[Kg] [Lbs]
60 132 30 17 Deg
75 165 26.8 15 Deg
90 198 23 13 Deg
105 231 19.4 11 Deg
120 264 17.6 10 Deg

*Results are almost same as TC but there is almost no change at the speed on hills

DIMENSIONS & WEIGHTS

Weight (including Battery Pack)

140kg (308lb)

Wheelbase

1320mm (52”)

Seat height

700mm (28”)

Overall Length

2040mm (80”)

Maximum Payload Capacity, Including Rider(s)

140 kg (308 lb)

Optional Accessories

GPS tracker
Helmet
Goggles
Windshield
Rain cover
Hand protectors
